Khoom taw qhia

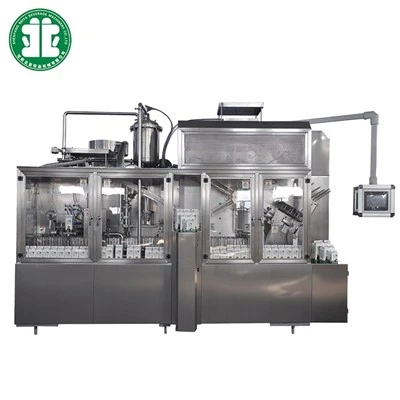

Lub thawv soy sauce filling tshuab yog lub tshuab tsis siv neeg puv puv thiab ntim khoom tshwj xeeb tsim tshwj xeeb rau cov kua txiv hmab txiv ntoo xws li kua ntses thiab vinegar. Nws integrates automatic carton forming, quantitative filling, sealing thiab tiav cov khoom tso tawm. Txais cov khoom noj- qib kev nyab xeeb tsim thiab nruab nrog cov kev tswj hwm ntse, nws tsim nyog rau qhov kub thiab txias aseptic filling ntau lawm scenarios, tuaj yeem ua tiav cov txheej txheem loj ntawm cov thawv ntim khoom noj khoom haus - ntim cov kua ntses, thiab siv dav rau cov loj- nplai thiab cov kab ntau lawm ntawm cov khoom noj khoom haus.
Khoom Parameter (Specification)
Cov ntaub ntawv tseem ceeb ntawm cov khoom siv yog raws li hauv qab no:
|
1. Khoom Parameters |
High-cov qauv kev txhawb nqa rigidity, zaub mov- qib stainless hlau + tshwj xeeb nto kho rau lwm qhov chaw; |
|
2. Ntim Qhov Loj Parameters |
Kev xaiv lub thawv hauv qab qhov ntau thiab tsawg 57 × 57mm, 70 × 70mm, 83 × 83mm, 95 × 95mm, tsuas yog ib qho kev qhia tshwj xeeb rau kev tsim khoom ib zaug; |
|
3. Cov ntaub ntawv muaj peev xwm |
3000 lub thawv ib teev; |
|
4. Sau cov ntaub ntawv ntim |
250-500ml (57 × 57mm), 500-1000ml (70 × 70mm), 1000-1500ml (83 × 83mm), 1500-2000ml (95 × 95mm); |
|
5. Lub hau Parameters |
Tau tshaj 26-36mm hau, dual capping / non-capping hom, ib hom kev ua haujlwm ib batch; |
|
6. Filling Temperature Parameters |
Chav ntsuas kub (tsis muaj kev tswj qhov kub thiab txias); |
|
7. Fais fab Parameters |
Tag nrho lub zog 25KW, peb -theem fais fab mov system; |
|
8. Txee Lub neej Parameters |
Tsis muaj tus nqi ruaj khov, txiav txim siab los ntawm cov khoom lag luam thiab cov txheej txheem tsim khoom; |
|
9. Cua Siab Parameters |
Compressed cua siab 1.0-1.4Mpa, ntws 1.4-2m³/min, tsis muaj roj thiab tsis muaj plua plav; |
|
10. Dej Txias Parameters |
Cov dej txias txias ntau dua lossis sib npaug li 40L / min, qhov kub thiab txias 30 degree; |
|
11. Cov yam ntxwv tsis zoo |
Ntev 4m, Dav 1.4m, Qhov siab 2.8m; |
|
12. Nyhav Parameters |
Tag nrho qhov hnyav 3500KG; |
|
13. Installation Parameters |
Tau tshaj cov cement, pobzeb thiab yas pem teb, tsis tas yuav tsum tau plastering; |
|
14. Kev ua haujlwm tsis zoo |
Ua-hauv kev ua kom zoo dua ua haujlwm kom tshem tawm cov kua foaming thiab splashing thaum lub sij hawm txhaws. |
khoom feature thiab daim ntawv thov
Muaj tseeb thiab ruaj khov filling. Txais servo quantitative filling technology, nruab nrog lub siab tsis zoo rov qab nqus thiab tiv thaiv - cov qauv leakage, nws tuaj yeem ua kom tsis txhob muaj dej ntws tawm, xau thiab ua npuas dej thaum lub sij hawm soy sauce filling, nrog me me filling yuam kev, ua kom muaj peev xwm ntawm txhua yam khoom thiab txo cov khoom siv raw. Cov cuab yeej siv no feem ntau yog siv rau kev lag luam khoom noj khoom haus, tsom mus rau qhov tsis siv neeg sau cov khoom ntim ntau lub thawv- ntim cov kua txiv hmab txiv ntoo.
cov khoom paub meej
Tsis siv neeg tsim cov txheej txheem ntawm lub ru tsev: daim ntawv hauv qab ua ntej- kev sib sau, hauv qab cua sov sealing thiab shaping, hauv qab sealing txoj kev thiab ntxiv dag zog, ultrasonic nto npog kev kho mob, sab saum toj pre-shaping processing, khoom loading thiab filling, sab saum toj sealing thiab tsim, ntau lawm hnub code marking, thiab standardized tiav cov khoom ntim. Tag nrho cov txheej txheem ua haujlwm tau los ntawm kev ua haujlwm hauv computer nrog kev ruaj khov thiab ua haujlwm tau zoo, tsuas yog xav tau ib leeg xwb - tus neeg ntawm - lub luag haujlwm thiab kev saib xyuas thoob plaws hauv cov txheej txheem.
khoom tsim nyog
Lub thawv soy sauce filling tshuab nruj me ntsis ua raws li cov qauv tsim khoom noj khoom haus thiab khoom siv kev lag luam. Lub tshuab tag nrho tau dhau cov zaub mov- qib kev soj ntsuam kev nyab xeeb, thiab cov tub ntxhais filling thiab sealing system tau dhau ntau txhiab qhov kev sim ua haujlwm nrog kev ua haujlwm ruaj khov thiab txhim khu kev qha. Cov cuab yeej tshem tawm cov teeb meem ntau lawm xws li sau cov dej xau, qhov sib txawv ntawm lub peev xwm thiab kev sib khi tsis zoo, txhim kho cov khoom lag luam, thiab txo cov nqi zog thiab cov khoom siv raw khoom pov tseg. Tam sim no, nws tau dav siv nyob rau hauv cov kab ntau lawm ntawm ntau condiment ntau lawm tuam txhab uas muag nyob rau hauv lub teb chaws, adapting mus rau ib txwm tsis tu ncua loj ntau lawm. Nws cov khoom siv tau zoo, ua tiav qhov tseeb thiab cov qauv kev nyiam huv tau lees paub los ntawm kev ua lag luam thiab cov neeg siv khoom, ua rau nws nyiam cov khoom siv tsis siv neeg rau cov qauv tsim khoom ntawm cov thawv ntawv - ntim cov kua txiv hmab txiv ntoo.
Xa, shipping thiab pab
Kev koom tes nrog peb, koj yuav tau txais tag nrho -kev txhawb nqa kev pabcuam. Koj tuaj yeem tau txais cov ntaub ntawv kwv yees ua lag luam raug thiab cov ntaub ntawv txheeb xyuas cov txiaj ntsig zoo los pab kev txiav txim siab ua lag luam- ua. Koj tuaj yeem txaus siab rau cov qauv kev lag luam mus ntsib thiab tshuaj xyuas cov kev pabcuam los ntawm peb pawg kws tshaj lij. Koj tuaj yeem tau txais kev cob qhia ua haujlwm kom paub txog kev paub theoretical thiab kev ua haujlwm zoo. Koj tuaj yeem nkag mus tau dawb ntawm - thaj chaw teeb tsa thiab kev debugging, nrog cov kev pabcuam txawv teb chaws tau ua raws li tau pom zoo. Koj tuaj yeem ntsib 48-teev nrawm ntawm- qhov chaw pabcuam teb. Koj tuaj yeem txaus siab rau ib qho - xyoo puv tshuab warranty thiab kev txhawj xeeb mus ib txhis- kev pabcuam dawb. Koj tuaj yeem tau txais tiag tiag-lub sijhawm hloov kho kev lag luam cov ntaub ntawv thiab kev txawj ntse. Koj tseem tuaj yeem tau txais cov kev pabcuam tomqab muag thaum koj cov khoom xav tau hloov kho thiab kho kom zoo.
FAQ
Q1: Dab tsi yog qhov zoo ntawm cov thev naus laus zis hauv cov cuab yeej siv?
A1: Cov thev naus laus zis tseem ceeb muaj txiaj ntsig zoo:
① Siab-precision filling li qub kom paub meej qhov tseeb nrog qhov ua yuam kev tsawg dua lossis sib npaug li ± 1%, lav cov khoom ntim ib lub hnab;
② Cov kev tswj xyuas ntse ua rau kev ua haujlwm yooj yim thiab yooj yim, tso cai rau - lub sijhawm saib xyuas cov khoom tsis raug rau kev hloov kho raws sijhawm thiab kev saib xyuas.
Q2: Cov khoom dab tsi yog koj lub gable top carton filling tshuab feem ntau haum rau?
A2: Peb lub tshuab gable sab saum toj lub thawv ntim tshuab muaj ntau yam kev siv, haum rau kev sau cov dej haus xws li mis nyuj, kua txiv hmab txiv ntoo, dej, qab zib, qe kua, kua liab, cawv txiv hmab, cawv, thiab lwm yam. Cov cuab yeej ua kom haum rau cov dej haus sib txawv ntawm cov viscosities thiab ua tau raws li cov kev xav tau ntawm cov khoom khaws cia nyob rau hauv cov xwm txheej sib txawv, suav nrog qhov kub thiab txias. Tsis tas li ntawd, nws tuaj yeem tuav cov khoom tshwj xeeb xws li hmoov, granules, thiab cov khoom noj tsiaj.
